Configuration file

When you create a Checkout UI Customizer using the SHOPLINE CLI, the shopline.ui.extension.toml file is automatically generated in the root directory. The file contains the extension's name, the extension points, capabilities, and the extension settings.

How it works

When you launch an extension using the SHOPLINE CLI, the configuration file is parsed. This parsed data then dictates where the extension is rendered on the page.

When you publish the extension to SHOPLINE, the configuration file and your extension code are pushed together.

type = "checkout_ui_customizer"
name = "customizer-name"
extension_points = ['Checkout::Dynamic::Render']
[capabilities]
block_progress = true
# [settings]
# ....

Configuration properties

Property	Required or not	Description
`type`	Yes	The type of the extension. For Checkout UI Customizers, the value is fixed as `checkout_ui_customizer`.
`name`	Yes	The name of the Checkout UI Customizer.
`extension_points`	Yes	The extension point where the extension will be rendered. This value must be identical to `extensionPoint` specified in the `render(extensionPoint, App)` function within your code. For example, if the extension code uses the function call `render('Checkout::Dynamic::Render', (props) => { return <Text/>; })`, then the `Checkout::Dynamic::Render` extension point must be included in this `extension_points` property.
`capabilities`	No	Indicates the capability of the Checkout UI Customizer. Supported capabilities are: `block_progress`: indicates whether the extension can intercept the checkout process. Default value: `false`. `true`: intercept `false`: do not intercept `network_access`: indicates whether network access is allowed. Default value: `false`. `true`: allowed `false`: not allowed
`settings`	No	Indicates the configuration items that merchants can set in the checkout editor.

Merchant configuration items

The settings property in the configuration file defines a set of configuration options that merchants can set in their checkout editors.

For example, the following code sets up two configuration items. name of the first configuration item is Title, which will be displayed to merchants. Its type is a single-line text field (single_line_text_field). For more data types, refer to Supported data types.

Merchants can input characters in this field in the checkout editor, and you can validate the entered data. The input content will eventually be passed into the extension. In the extension, you can access this value using settings.{key}.

[settings]
  [[settings.fields]]
  key = "title"
  type = "single_line_text_field"
  name = "Title"
  description = "Title description"
  [[settings.fields]]
  key = "title2"
  type = "single_line_text_field"
  name = "Title 2"
  description = "Title description 2"

Property	Required or not	Description	Example
`key`	Yes	The key used to identify the setting.	`"title"`
`type`	Yes	The data type of the setting. Refer to Supported data types for specific data types.	`"single_line_text_field"`
`name`	Yes	The name of the setting, which is shown to merchants.	`"Title"`
`description`	No	The description of the setting, which is shown to merchants.	`"Title description"`
`validations`	No	The validation rules for setting values. Refer to Data validation options for specific verification rules.	`[[settings.fields.validations]] name = "max", value = "25"`

Supported data types

Data type	Description	Example
`boolean`	Valid values are `true` and `false`.	`true`
`date`	The date in the ISO 8601 format.	`1997-01-01`
`date_time`	The date and time in the ISO 8601 format.	`1997-01-01T00:00:00`
`single_line_text_field`	A field that allows merchants to enter a single line of text.	`Title`
`multi_line_text_field`	A field that allows merchants to enter multiple lines of text.	`Title1 Title2 Title3`
`number_integer`	An integer.	`10`
`number_decimal`	A number with decimal places.	`10.4`

Data validation options

Option	Description	Supported data types	Example
Minimum length	The minimum length of text	single_line_text_field multi_line_text_field	[[settings.fields.validations]] name = "min" value = "1"
Maximum length	The maximum length of text	single_line_text_field multi_line_text_field	[[settings.fields.validations]] name = "max" value = "20"
Regular expression	A regular expression	single_line_text_field multi_line_text_field	[[settings.fields.validations]] name = "regex" value = "^[0-9]*$"
Choices	A list of predefined options, used to limit the values of the configuration item	single_line_text_field	[[settings.fields.validations]] name = "choices" value = "["yellow", "green", "red"]"
Minimum date	The minimum date in the ISO 8601 format	date	[[settings.fields.validations]] name = "min" value = "1997-01-01"
Maximum date	The maximum date in the ISO 8601 format	date	[[settings.fields.validations]] name = "max" value = "1997-03-03"
Minimum datetime	The minimum date and time, in the ISO 8601 format	date_time	[[settings.fields.validations]] name = "min" value = "1997-03-03T00:30:00"
Maximum datetime	The maximum date and time, in the ISO 8601 format	date_time	[[settings.fields.validations]] name = "max" value = "1997-03-03T17:30:00"
Minimum integer	The minimum integer number	number_integer	[[settings.fields.validations]] name = "min" value = "10"
Maximum integer	The maximum integer number	number_integer	[[settings.fields.validations]] name = "max" value = "20"
Minimum decimal	The minimum decimal number	number_decimal	[[settings.fields.validations]] name = "min" value = "0.4"
Maximum decimal	The maximum decimal number	number_decimal	[[settings.fields.validations]] name = "max" value = "2.99"
Maximum precision	The maximum number of decimal places	number_decimal	[[settings.fields.validations]] name = "max_precision" value = "3"

Block progress

When and how to block progress

If the checkout process requires buyers to provide specific information or complete certain interactions, their checkout must be blocked until all necessary information is provided. You can return { success: false } through Interceptor to block the process, and the configuration file must include the block_progress capability.

For example, to ensure that buyers agree to certain terms before checking out, you can require them to click a checkbox. Set the capabilities property to block_progress = true as shown in the following:

[capabilities]
block_progress = true

Enable or disable progress blocking

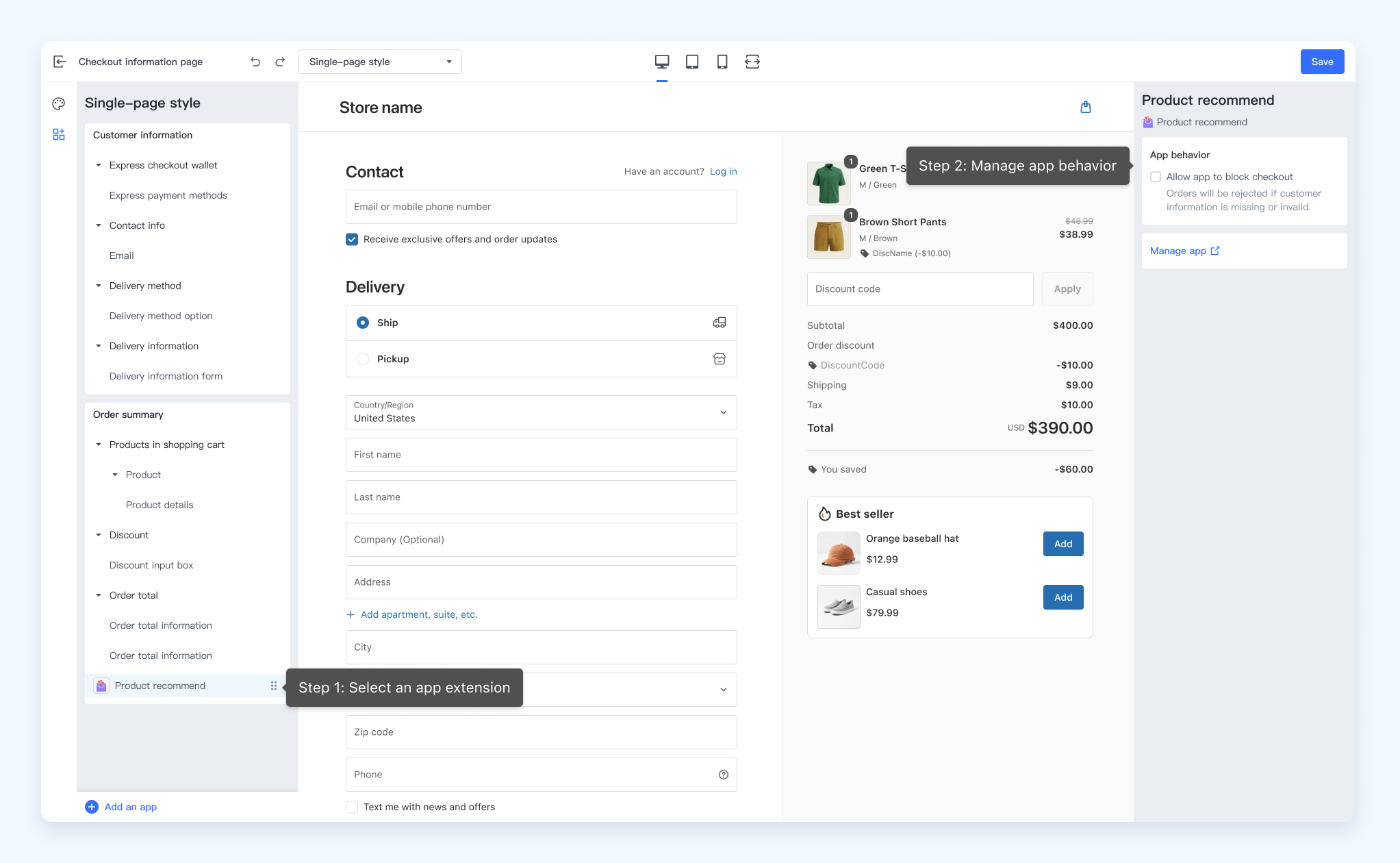

The progress blocking feature is not automatically activated by only enabling the block_progress setting. Merchants must manually enable or disable this feature by checking or unchecking the Allow Application to block the checkout checkbox under Application behaviors in the checkout editor.

config
