Structure

Learn about the structure of a theme app extension and how to configure it.

Directory structure

The standard directory structure for a theme app extension is as follows:

└── theme-app-extension
    ├── blocks
    │   ├── app-block.html
    │   ├── app-embed-block.html
    │   ├── conditional-app-block.html
    │   └── ...
    ├── components
    │   ├── logo-icon.html
    │   └── ...
    ├── i18n
    │   ├── en.json
    │   ├── en.schema.json
    │   ├── zh-hans-cn.json
    │   ├── zh-hans-cn.schema.json
    │   ├── zh-hant-tw.json
    │   ├── zh-hant-tw.json
    │   └── ...
    ├── public
    │   ├── app-block.css
    │   ├── app-block.js
    │   ├── app-embed-block.css
    │   ├── app-embed-block.js
    │   └── ...
    └── .shopline-cli.yml

Descriptions for different directories and files are as follows:

Directory/file	Description
blocks	HTML files for App Blocks and App Embed Blocks.
components	Snippets of code for the theme app extension that can be referenced and reused within App Blocks and App Embed Blocks.
i18n	JSON files for multi-language support, storing translations for merchants and customers. These are used similarly to theme locale files.
public	CSS, JavaScript, and other static resources. They can be included using the `javascript` and `stylesheet` properties in the schema, or with the `asset_url` filter.
.shopline-cli.yml	Configuration file for the theme app extension.

App Block

App Blocks allow merchants to add blocks from the app into theme sections.

By default, App Blocks are not automatically added after installing an app. Merchants need to add App Blocks using the theme editor manually.

The following example creates a simple <span> element with a style attribute. For detailed configuration in the schema tag within the example, refer to Schema.

<span style="color: {{ block.settings.color }}">
  App Block
</span>
{{#schema}}
  {
    "name": "App Block",
    "target": "section",
    "stylesheet": ["public/app.css"],
    "javascript": ["public/app.js"],
    "settings": [
        {
          "label": "Color",
          "id": "color",
          "type": "color",
          "default": "#000000"
        }
    ]
  }
{{/schema}}

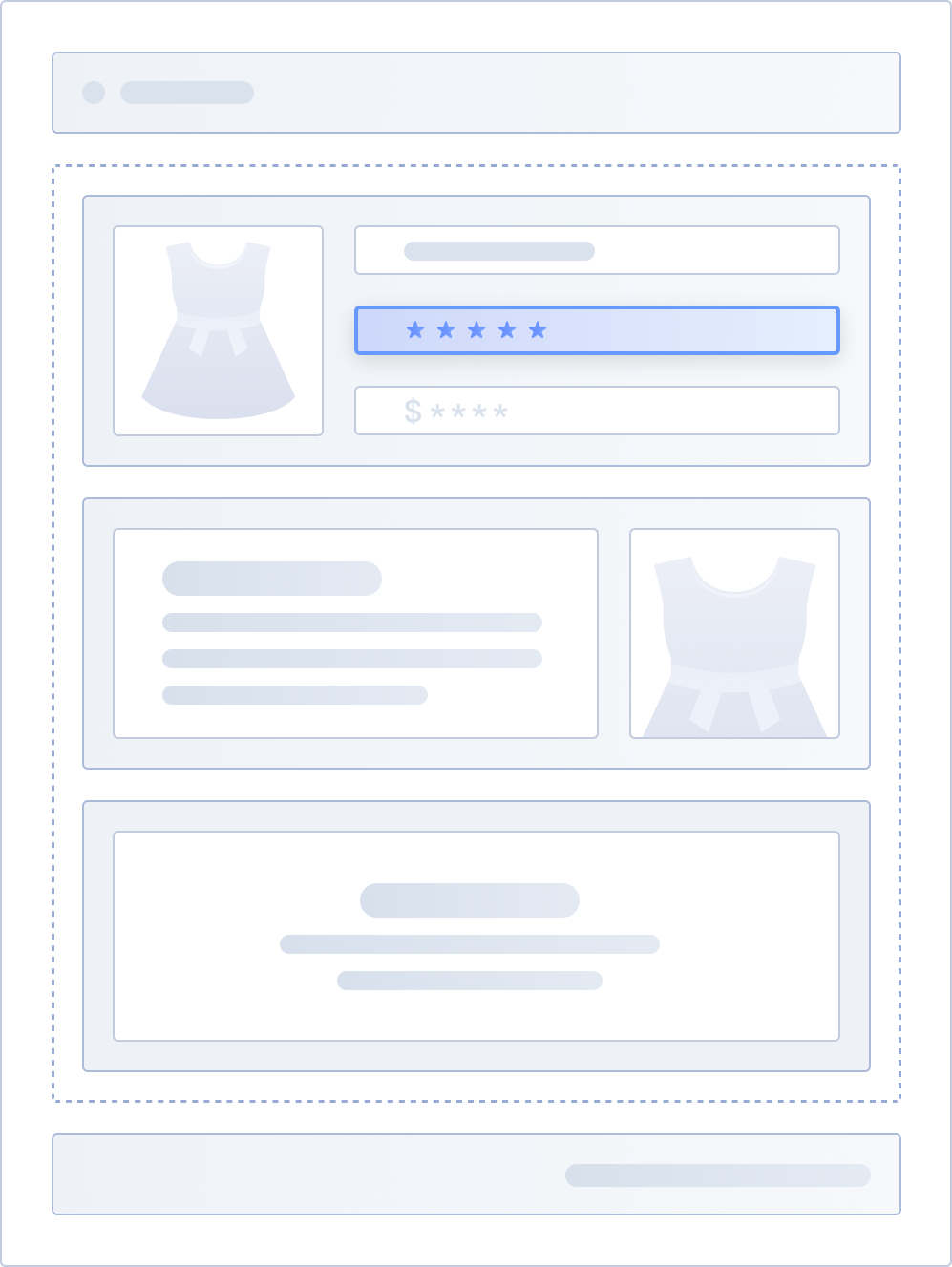

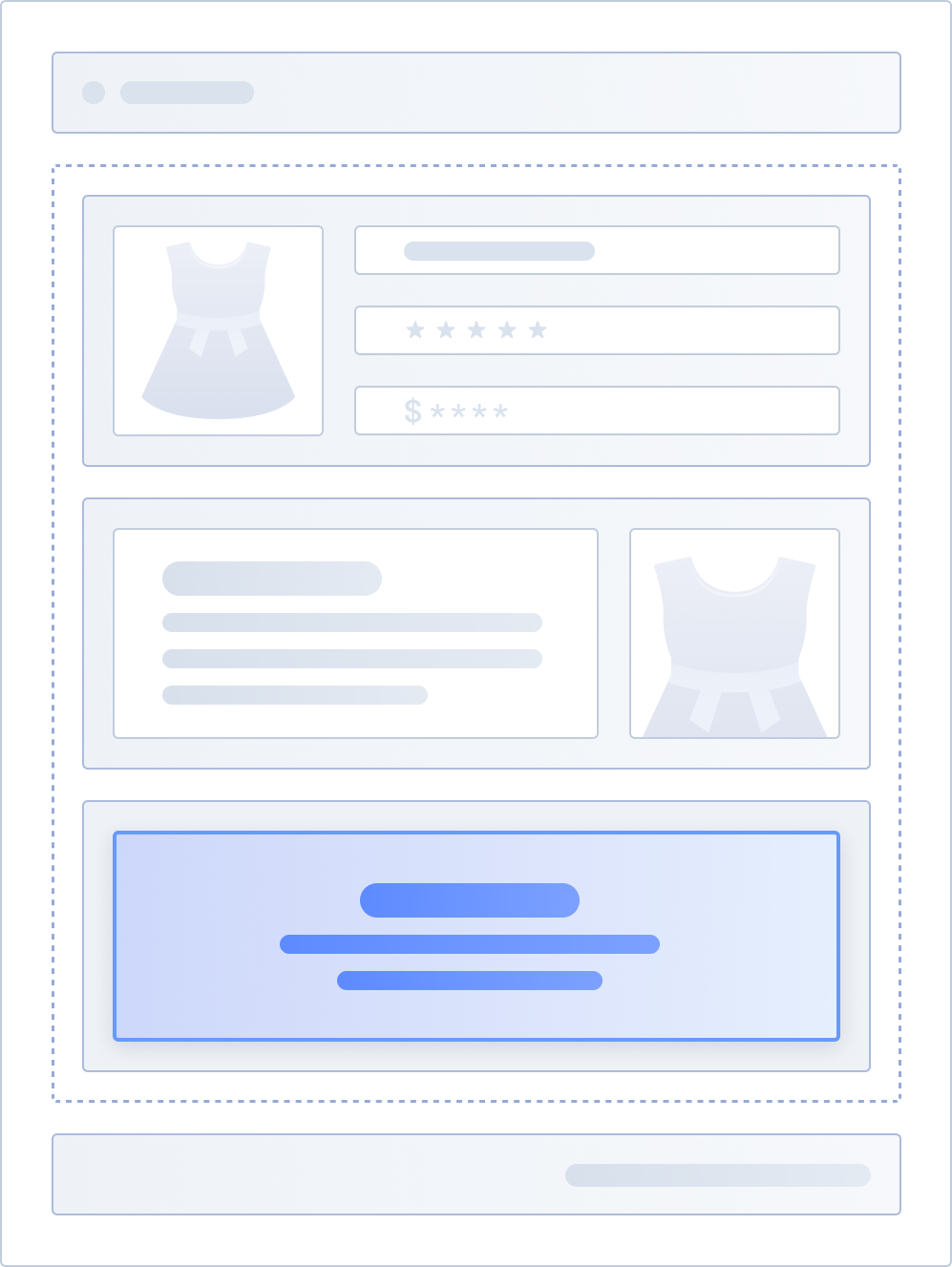

The following shows examples of adding an App Block within a theme section and an independent App Block in the theme.

App Block in a theme section	An independent App Block

App Blocks are flexible, allowing merchants to add, remove, and sort them at the section level in the theme using a visual editor.

App Embed Block

App Embed Blocks enable merchants to add UI-less features or global floating elements on a page from the app into the theme. They are suitable for the following types of apps:

Apps that provide floating elements on the page, such as customer service chat apps and announcement notification apps.
Apps that add SEO meta tags, analytics, or custom forms.

You can set the target property in the schema to either head or body to determine where the App Embed Block is injected. By default, App Embed Blocks are not automatically activated upon installation. Merchants need to activate them from App embeds in the theme editor.

The following example demonstrates an App Embed Block being inserted at the bottom of the <body>, rendering a button that floats at the bottom of the page.

<div style="position: fixed; bottom: 0; right: 0">
  <img src="{{ `comment.jpg` | asset_url() }}" />
</div>
{{#schema}}
{
  "name": "App Embed Block",
  "target": "body",
  "settings": []
}
{{/schema}}

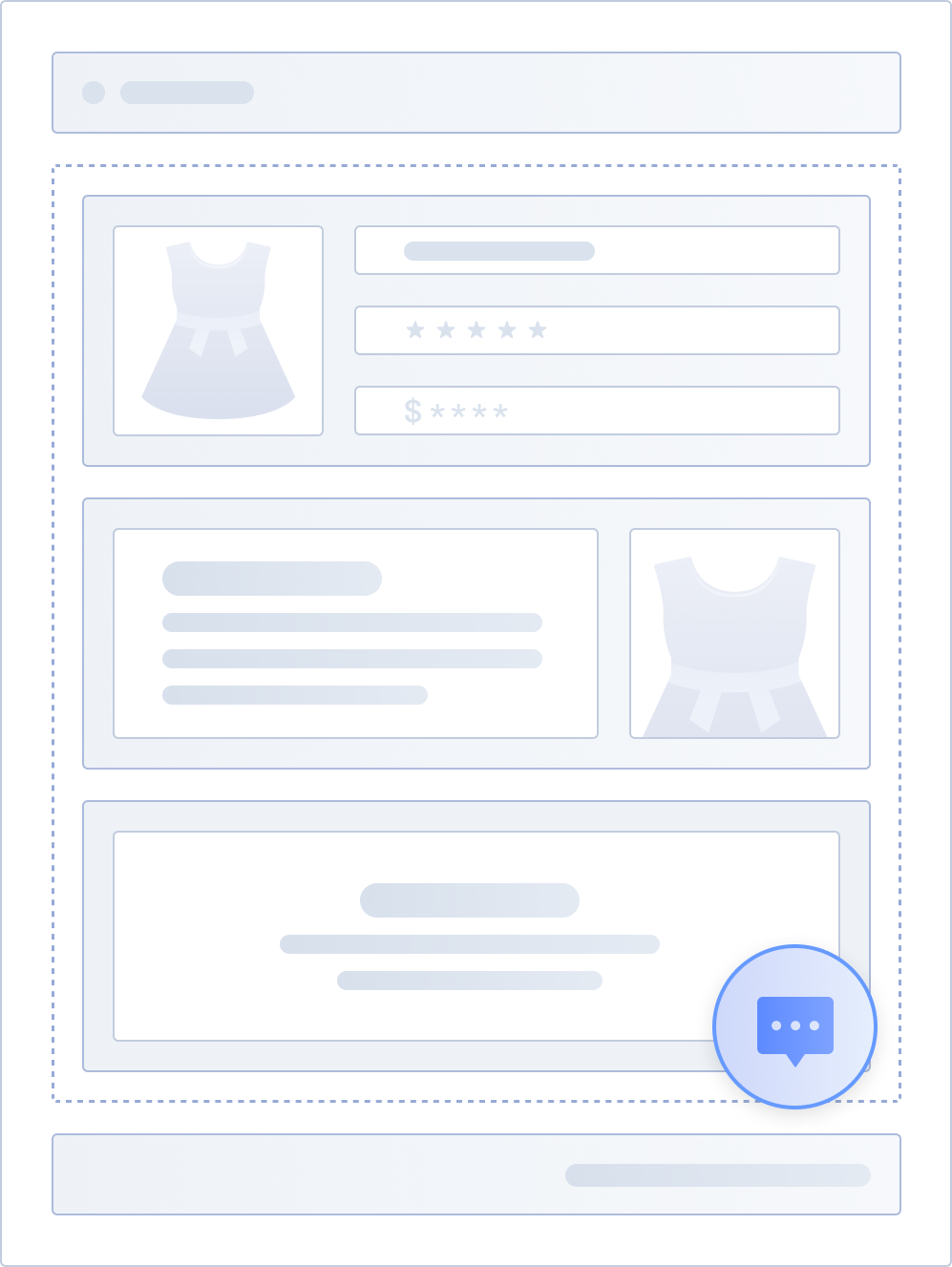

The following shows an example of the floating button rendered on the page.

Schema

The schema for App Blocks and App Embed Blocks is similar to the theme section schema and supports the following attributes. Some attributes are unique to App Blocks and App Embed Blocks.

Attribute name	Type	Required or not	Description
name	string	Yes	Title of the App Block or App Embed Block in the theme editor. Recommended to be within 25 characters to fit the theme editor sidebar.
target	string	Yes	Position on the page where the App Block or App Embed Block is rendered. App Blocks support the value `section`, indicating rendering in the theme section. App Embed Blocks support the following values: `head`: indicates in the `<head>` tag of the page. `body`: indicates in the `<body>` tag of the page.
stylesheet	array	No	CSS files to load from the `public` directory.
javascript	array	No	JavaScript files to load from the `public` directory.
templates	array	No	Templates where the App Block or App Embed Block can be injected. Defaults to all pages if not set. Valid values are: `index` `collections_all` `collection` `product` `cart` `blog` `article` `404` `search` `page` `policy` `password` `gift_card` `customers/login` `customers/register` `customers/account` `customers/addresses` `customers/orders` `customers/order` `customers/activate_account` `customers/forgot_password` `customers/company`
class	string	No	Additional CSS classes to include in the wrapper element, similar to the `class` attribute in theme sections. The theme app extension includes the `shopline-block` class by default. Caution: This attribute is not applicable when the App Embed Block's target value is `head`.
tag	string	No	Tag used to wrap the block output, defaults to `div`. Valid values are: `article` `aside` `div`(default) `footer` `header` `section` Cautions: • App blocks do not support the configuration of this attribute. • This attribute is not applicable when the App Embed Block's target value is `head`.
settings	array	No	Configuration options for the App Block or App Embed Block. For configuration details, refer to settings in sections.
limit	integer	No	Limit on the number of App Blocks or App Embed Blocks that can be added into the theme section.
